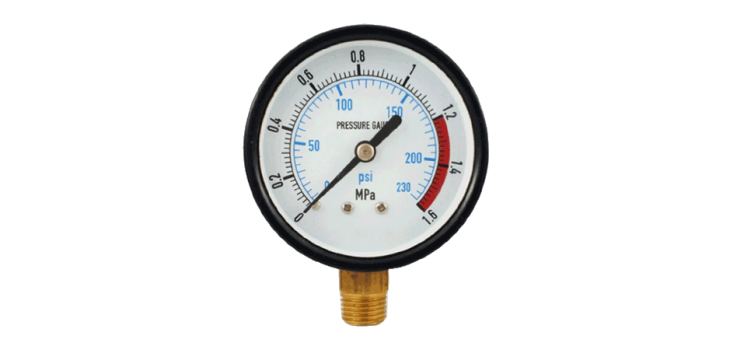

The instruments are suitable for measuring the pressure of liquids, gases or vapours that are not explosive, non-crystallizing, non-solidifying, and have no corrosive effect on copper and copper alloys.
| Processing customization | Yes | Measuring range | (0~60)MPa |
| Model | Y60 | Process connections | Threaded connection |
| Type | Radial ordinary pressure gauge | Ambient temperature | (-5~+55)℃ |
| Accuracy class | 2.5 | Material | Electrophoresis, electroplating |
| Nominal diameter | 60mm | Fill the solution | not |
| Thread size | M14×1.5(standard)、G1/4、 | ZG1/4 etc. | (Customizable) |
| Measuring range | 0.1、0.16、0.25、0.4、 | 0.6、1、1.6、 | 2.5、4、6、10、16、25、40、60 |
Directions for use
- The pressure gauge is suitable for measuring liquids or pipelines that do not corrode the internal structure of the instrument;
- The pressure of the pressure gauge should not exceed 3/4 of the full scale, and the upper limit of the pressure of the fluctuating medium should not exceed 2/3, and the range should be more than 1/3 of the full scale under the above two conditions;
- The pressure gauge should be installed horizontally or vertically on the measuring pipeline;
- The pressure gauge in use must be verified once every two months, and should be stopped immediately if there is a failure or the measurement accuracy is too large;
- When the pressure gauge is selected, it is necessary to determine the appropriate accuracy, range and use environment, when the pressure gauge fluctuates greatly, it is recommended to choose a damper or buffer tube, and the glycerin-filled shock-resistant pressure gauge should be used in the environment with large vibration, and the silicone-filled seism-resistant pressure gauge should be used in the sub-zero environment, and the radiator should be added to the medium with high measurement temperature;
- The pressure gauge should choose a metal joint and shell of suitable size, so that it can be used reasonably in different environments, and if you need special requirements, you can contact the company’s sales department for customization;
- We are a technical service provider, with rich experience in supply chain management, and look forward to our attentive service to bring you greater value!
